240v, 1-speed, 56 frame jet pump.

This a a 100% authentic, OEM part for Jacuzzi® Hot Tubs & Sundance Spas.

The wet end of the assembly can be rotated to accommodate your application. The service tag on these motors will note 3450 next to rpms (NOT 1725/3450).

Replaces single speed pumps on the following models:

• August 2008+ J-230
• August 2008+ J-270
• August 2008+ J-280
• August 2008+ J-235
• August 2008+ J-245
• August 2008+ J-275
• August 2008+ J-335
• August 2008+ J-345
• August 2008+ J-355
• August 2008+ J-365
• August 2008+ J-375
• January 2014+ J-385
• All J-400 Collection Hot Tubs
• 2011+ J-LX & J-LXL

• June 2009+ Aspen
• January 2012+ Altamar
• August 2008+ Cameo
• January 2009+ Capri
• May 2010+ Chelsee, Hamilton, Hartford, Hawthorne
• January 2011+ Constance
• June 2009+ Majesta
• January 2009+ Marin
• January 2009+ Maxxus
• August 2008+ Optima
• January 2012+ Peyton
• January 2011+ Victoria

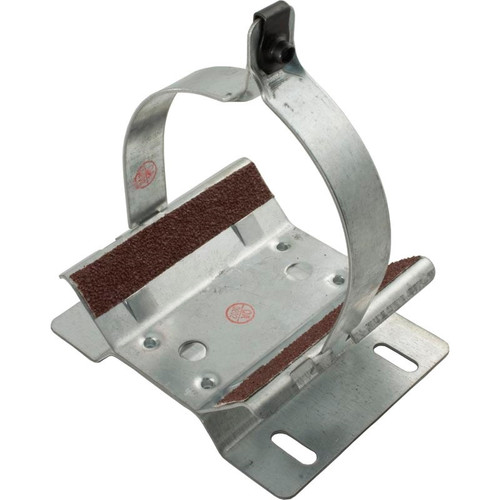

Please Note: Universal mounting bracket part# 6000-535 (See below) may be required if you are replacing a motor with a fixed mounting bracket welded to the motor housing. If your motor body has the mounting bracket welded to it, then you need the new style bracket (no modifications necessary).  If your motor body has a single strap wrapped around it and a single bolt hold that strap in place then you will not need the new style bracket as your spa is already equipped with it.
